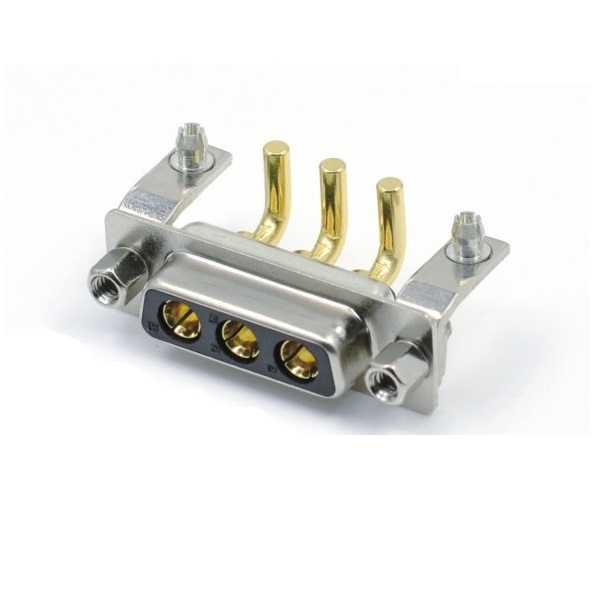

3W3 Female R/A Type Connector For PCB

Part No: B08-3W36114D-X1

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: D-SUB Power Connectors
Pitch: mm

Contacts No: 3 (0 Signal pin + 3 Power pin)

Application: PCB assembly

Type: Right Angle type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Gold over nickel
Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:black)
Shell: SPCC nickel
Bracket: Steel nickel
Screw: Steel nickel

ELECTRICAL PERFORMANCE

Current rating: 10A, 20A, 30A, 40A for Power pin, 3A for Signal pin
Dielectric Withstanding Voltage: 1000V AC
Insulation Resistance: 5000MΩ/Min

MECHANICAL PERFORMANCE

Durability: 200 mating cycles
Mating force: 80N per contact Max for power pin, 25N per contact Max for Signal pin
Unmating force: 5N per contact Min for power pin, 0.4N per contact Min for Signal pin.

Environmental

Temperature Rating: -55°C to +105°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
