Amphenol Connector
| PRODUCT FAMILY |
|

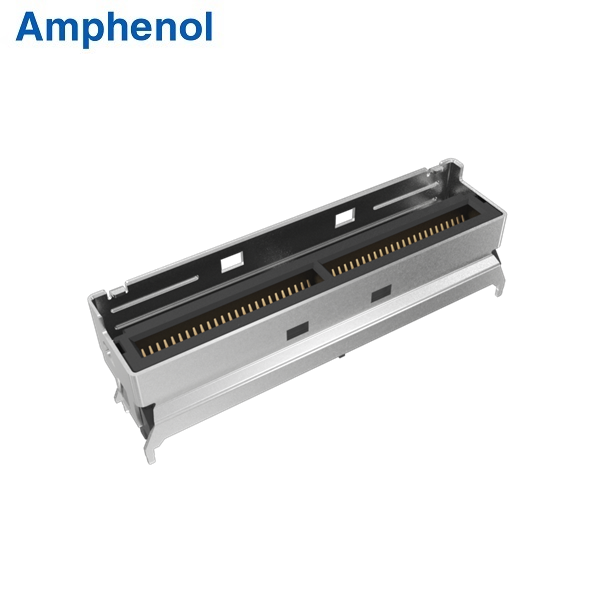

Description: Mini Cool Edge IO Connectors Pitch: 0.60mm Contacts No: 38, 50, 74, 84, 100, 124 and 148 Application: Networking,High-end Computing System,Server and Storage Systems
Type: Right Angle and Vertical SMT type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Tin over nickel Housing & Spacer: High temperature thermoplastic (UL 94V-0) Shorting Bar: Conductive pastic Cage: Stainless steel, nickel plating overall |
| ELECTRICAL PERFORMANCE |
|
Contact Resistance: 30mΩ max. initial; 15mΩ max. change after test Dielectric Withstanding Voltage: 300V DC Impedance: 95Ω |
| MECHANICAL PERFORMANCE |
|
Durability: 250 mating cycles Mating Force: 0.6N/pin max. Unmating Force: 0.06N/pin min. |
| Environmental |
|
Humidity: EIA-364-31, Method III, Subject unmated specimens to 24 cycles between 25˚C/ 80%RH and 65˚C/ 50% RH Temperature Life: EIA-364-17, Method A Test Condition 2, Test Time Condition C, Subject mated specimens to 105˚C for 168 hours Thermal Shock: EIA-364-32, Method A Test condition 1, -55˚C to 85˚C (10 cycles) |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
