Amphenol Connector
| PRODUCT FAMILY |
|

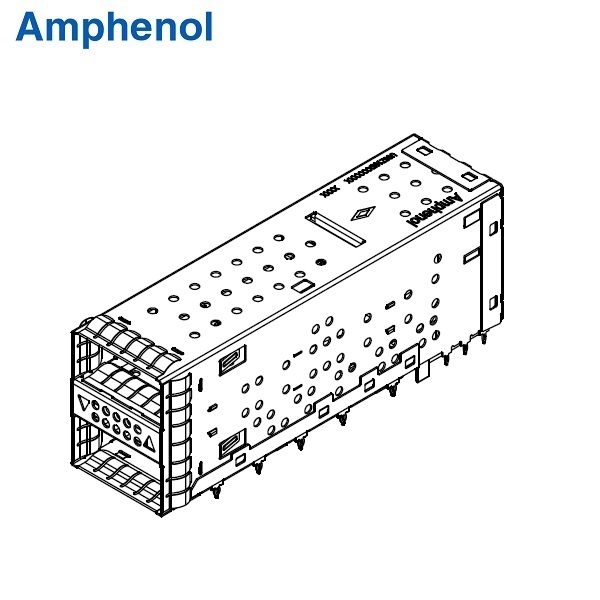

Description: UltraPort QSFP Connectors Pitch: 0.80mm Contacts No: 38 Application: 100Gb/s aggregated bandwidth solution.
Type: Right Angle DIP type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing & Spacer: High temperature plastic LCP (UL 94V-0) Cage: Copper alloy, nickel plating overall
Heat Sinks and Light Pipes: Available |
| ELECTRICAL PERFORMANCE |
|
Operating Voltage: 30 VDC per contact Operating Current: 0.5 A per contact Differential Impedance: 100Ω +/- 10Ω
|
| MECHANICAL PERFORMANCE |
|
Durability: 250 mating cycles Mating Force: 60 N max. Unmating Force (Cage): 30 N max
|
| ENVIRONMENTAL |
|
Operating and (Storage) Temperature: -20° to +85°C RoHS & Halogen-Free |
| ENVIRONMENTAL COMPLIANCE |
|
RoHS2.0: Compliant REACH SVHC: Yes |
