Amphenol Connector
| PRODUCT FAMILY |
|

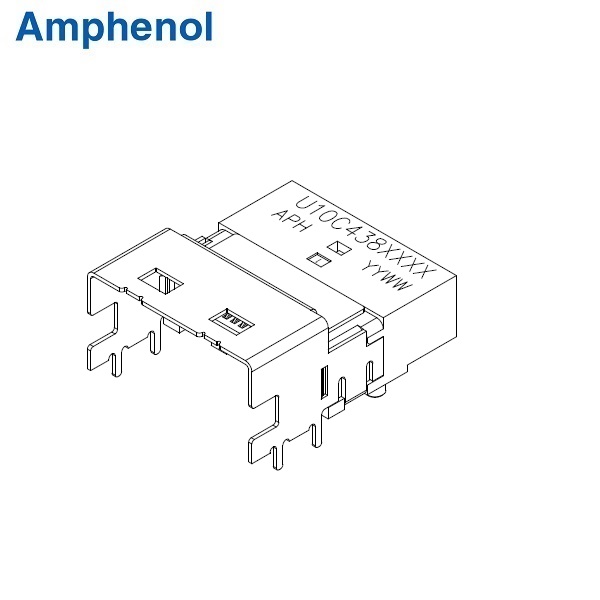

Description: SlimSAS Connectors Pitch: 0.60mm Contacts No: 38,74 and 124 Application: SAS and PCIe , support 4.0
Type: Right Angle and Vertical SMT type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing & Spacer: High temperature plastic LCP (UL 94V-0) Shell: Stainless Steel, nickel plating Cap: High temp plastic |
| ELECTRICAL PERFORMANCE |
|
OVoltage Rating: 30V AC (RMS)/DC max Current Rating: 0.5A max Differential Impedance: 85Ω±10Ω
|
| MECHANICAL PERFORMANCE |
|
Durability: 250 mating cycles Mating Force: 55N max. Unmating Force: 49N max
|
| ENVIRONMENTAL |
|
Operating Temperature: -40°C to +85°C Ambient Humidity: 80% R.H. max |
| ENVIRONMENTAL COMPLIANCE |
|
RoHS2.0: Compliant REACH SVHC: Yes |
