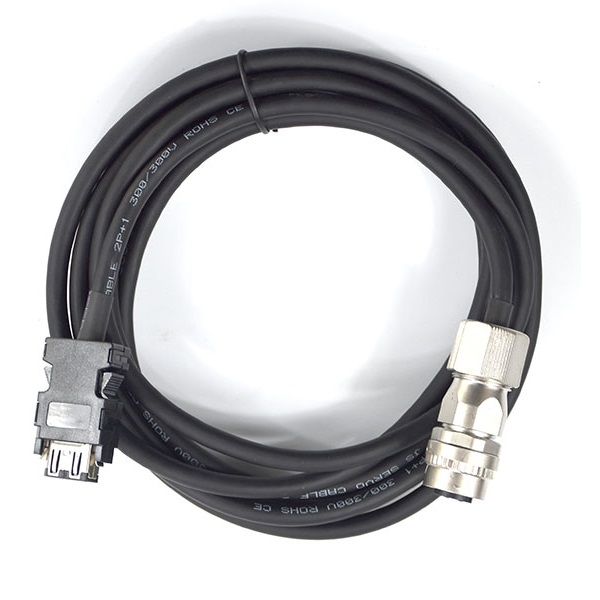

Cable Assy
| Connector-1 : | SM-10P Male Connector |
| Connector-2 : | CM-10P 10Pin Male Connector |
| Wire SPEC : | UL20276 24AWG*3P +AL + Braid PVC Jacket OD=6.0mm |
| Length : | 0.5m, 1.0m, 2m, 3m, 5m, 8m, 10m （Customizable） |
| Color : | Black or Green （Customizable） |
| Electrical Characteristics: | a) Current rating: 1.0A max |
| b) Voltage rating: 30VAC | |
| c) Differential impedance: 90 ± 15 ohm | |
| d) Insulation Resistance: 1000MΩ min. | |
| e) Temperature: -45°C ~ +85°C | |
| Application: | SIEMENS Servo Motor |
| Environmental standards: | RoHS Compliant |
