MCIO 16X/124 pos RA Cable For PCIe 5.0

Part No: TBD

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

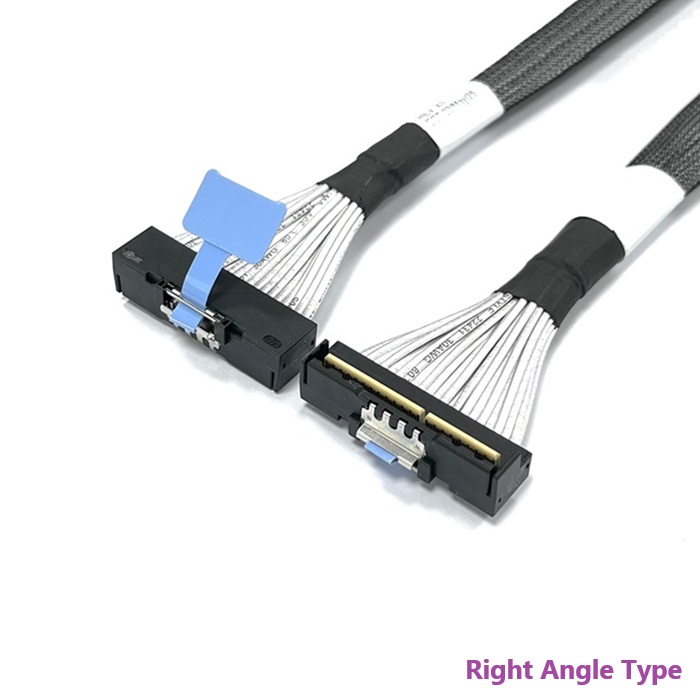

Product Description: MCIO 16X/124pos 85 Ohm Straight with pull tab

Series: SFF-TA-1016 MCIO
Cable Length: 0.245 Meter
Lock to mating part: With Latch
Plating: Au 30u" min on contact area
Pull tab : Yes
Connector Color:Black
Environmental Compliance: RoHS
Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Features and Benefits

Pitch 0.6mm connector design, plug with pull tab
1.57mm PCB card thickness compatible with PCIe riser card
Supports 85 ohm impedance applications
34-30AWG cables are optional
Straight, right angle, side exit and customization cable plug are optional
Supports signaling rates up to PCIe Gen5 and PCIe Gen6
Compliance to SFF(SFF-TA-1016)

Mechanical Performance

Latched Mating Force: 25N Maximum
Latched Retention: 50N Minimum
Durability : 200 Cycles

Electrical Performance

Voltage: 30VAC per contact
Current: 0.5A per contact
Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
Insulation Resistance: 10 MΩ minimum between adjacent pins

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes

Products with similar Specs:

MCIO 8i 74Pin STR-RA Cable PCIe Gen 5.0

8180-XXXXX (TBD)

MCIO 16X/124 pos RA-STR Cable For PCIe 5.0

8182710325

MCIO 8i 74P Cable PCIe Gen 5.0

8180-29913

MCIO 16X/124 pos STR Cable For PCIe 5.0

TBD
