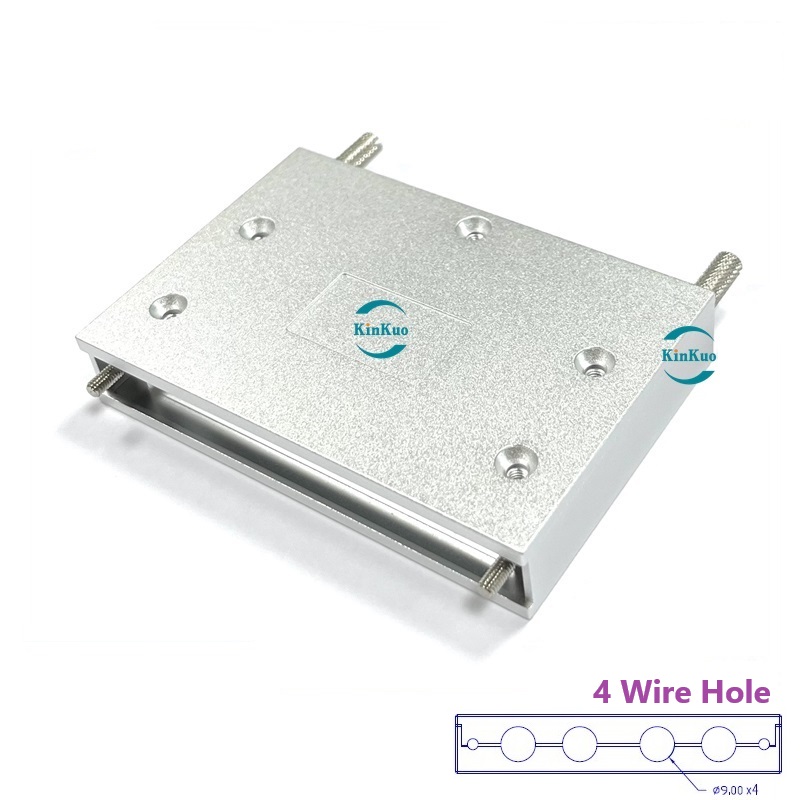

LFH 200Pin Male Metal Case(With 4 Wire Hole)

Part No: 71719-H001

DOCUMENTATION

Drawing(.PDF)

Environmental Compliance

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: Metal Case for LFH (Low Force Helix) connectors
Pitch: .050" (1.27mm)

Contacts No: 60, 160 and 200

Application: Industrial, medical, communication

Type: Assembly type

MATERIAL

Case: Aluminum Alloy
Surface Treatment: Anodic Oxidation
Jackscrews: Steel Nickel Plated
Screw: Steel
Cable Clip: Aluminum Alloy
Surface Treatment: Anodic Oxidation

ELECTRICAL PERFORMANCE

Voltage: 40 VAC RMS. for Connector only
Current: 1.0 Amps at 30°C temperature rise.
Initial Contact Interface resistance; 10 milliohms max.
Dielectric Strength: 500 VRMS for I minute.

MECHANICAL PERFORMANCE

Durability: 100 mating cycles for Connector only
Mating force below 60 grams max/contact
Unmating force 40 grams min /contact

Environmental

Temperature Rating: -40°C to +105°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
