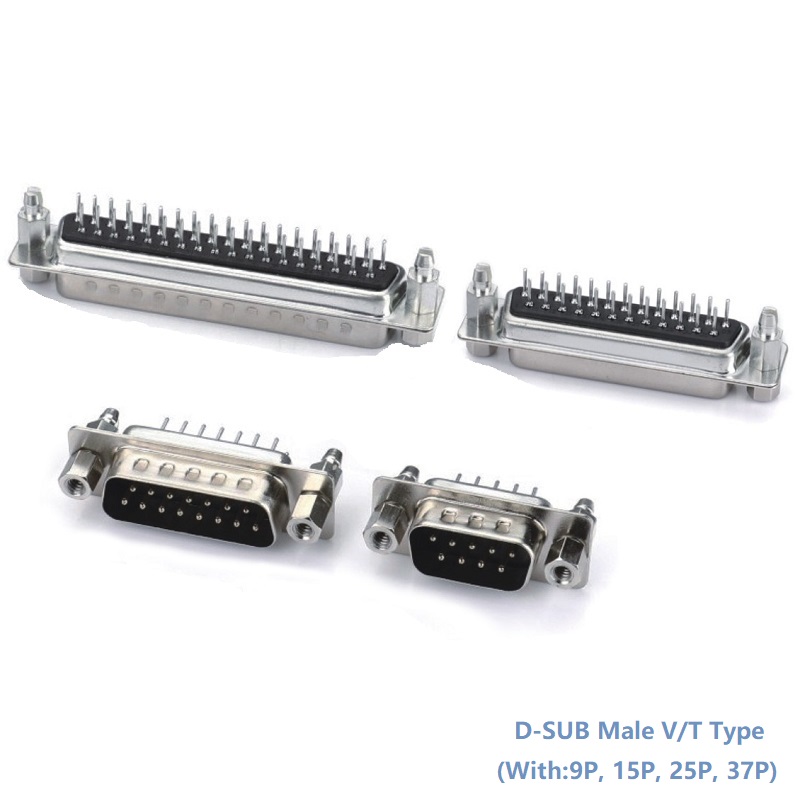

D-SUB Male V/T Type Connector With 5.0mm Nut(9P, 15P, 25P, 37P)

Part No: B05-0XX7X1AD-E5

DOCUMENTATION

Drawing(.PDF)

Specification

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: D-SUB Connectors
Pitch: .109" (2.77mm)

Contacts No: 9, 15, 25 and 37

Application: PCB assembly

Type: Vertical DIP type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Gold or Tin over nickel
Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:Black)
Shell: SPCC nickel
Board Lock: Steel nickel
Screw: Steel nickel

ELECTRICAL PERFORMANCE

Current rating: 3.0A max
Dielectric Withstanding Voltage:250V AC
Insulation Resistance: 1000MΩ/Min

MECHANICAL PERFORMANCE

Durability: 500 mating cycles
Mating force: 15N per contact Max.
Unmating force: 0.5N per contact Min.

Environmental

Temperature Rating: -45°C to +85°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
