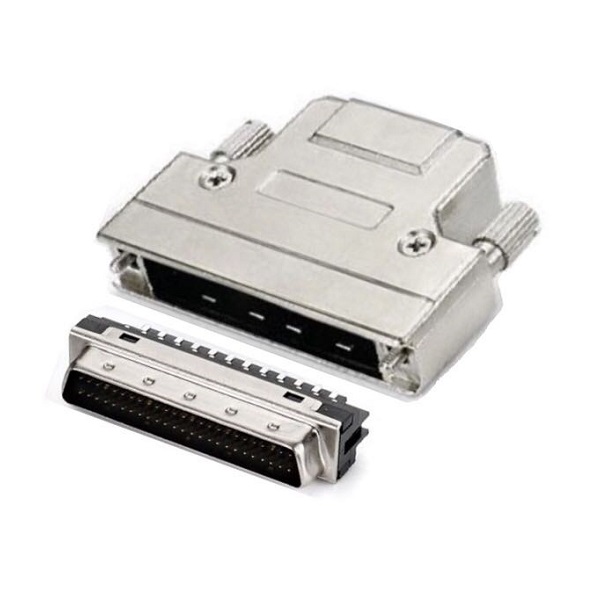

SCSI-II 50Pin Male Connector With Zinc Hood(Screw Type)

Part No: B02-050311C0-01 or B02-050111E0-X0 + B03-050N11NX-XX

DOCUMENTATION

Drawing(.PDF)

Quote Request

SPECIFICATION DETAIL

Terminal:	Copper alloy,Contact area plated 5u"
Shell:	SPCC,Plated Ni
Housing&Cover:	PBT+30%G.F.,Black
Hood:	Zinc Alloy, Plated Ni
Screw:	Steel, Plated Ni
Electrical Characteristics:	a) Contact Currect Rating: 0.5 Amp
	b) Dielectric Withstanding Voltage:500V AC
	c) Insulation Resistance: 500MΩ/Min
	d) Contact Resistance: 35mΩ/Max
	e) Operaion Temperature: -45℃～+85℃
Application:	Industrial Equipment
Environmental standards:	RoHS Compliant
