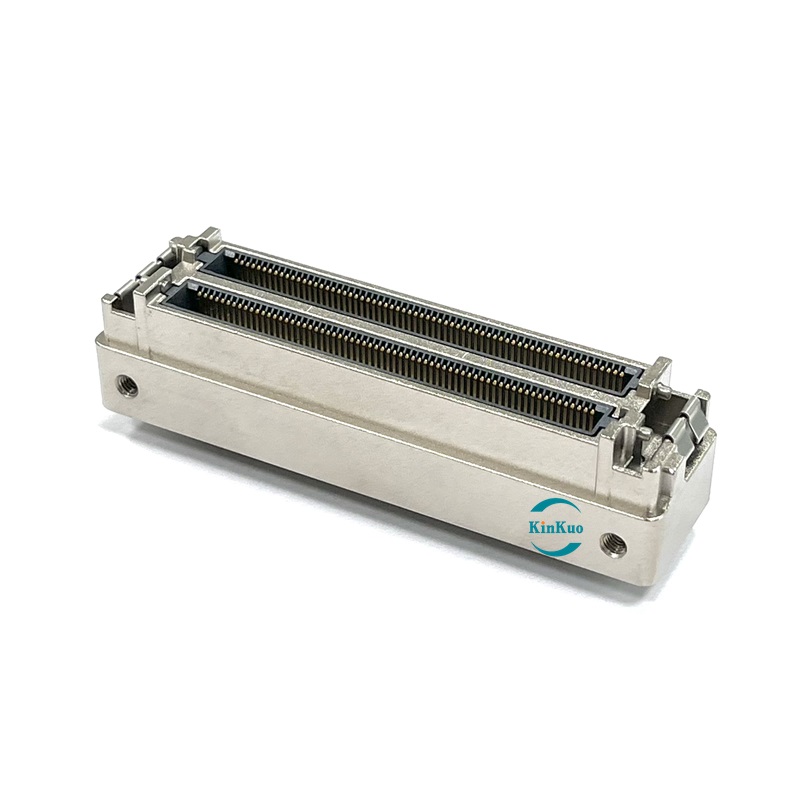

TC-ZIF 260Pin Connector (ITT Type-2)

Part No: 127050-0530

DOCUMENTATION

Drawing(.PDF)

3D Model

Specification

Environmental Compliance

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: TC-ZIF CONNECTOR
Pitch: .0315" (0.8mm)

Contacts No: 260

Application: Industrial, Medical Equipment.

Type: Vertical DIP type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Gold or Tin over nickel
Housing / Cover & Molding: LCP UL RATED 94 V-0, (Color:Black)
Shell: ZINC alloy nickel
Nut: Steel

ELECTRICAL PERFORMANCE

Voltage: 40 VAC RMS.
Current: 1.0 Amps at 30°C temperature rise.
Insulation Resistance: 1000MΩ Min
Dielectric Strength: 1000 VAC for I minute.

MECHANICAL PERFORMANCE

Durability: 800 cycles per hour, 2000 mating cycles
Mate/Un-mate torque: 55cNm Max
Industrial Gas: R=10mΩ Max(Final)

Environmental

Temperature Rating: -45°C to +85°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
