Connectors
| PRODUCT FAMILY |
|

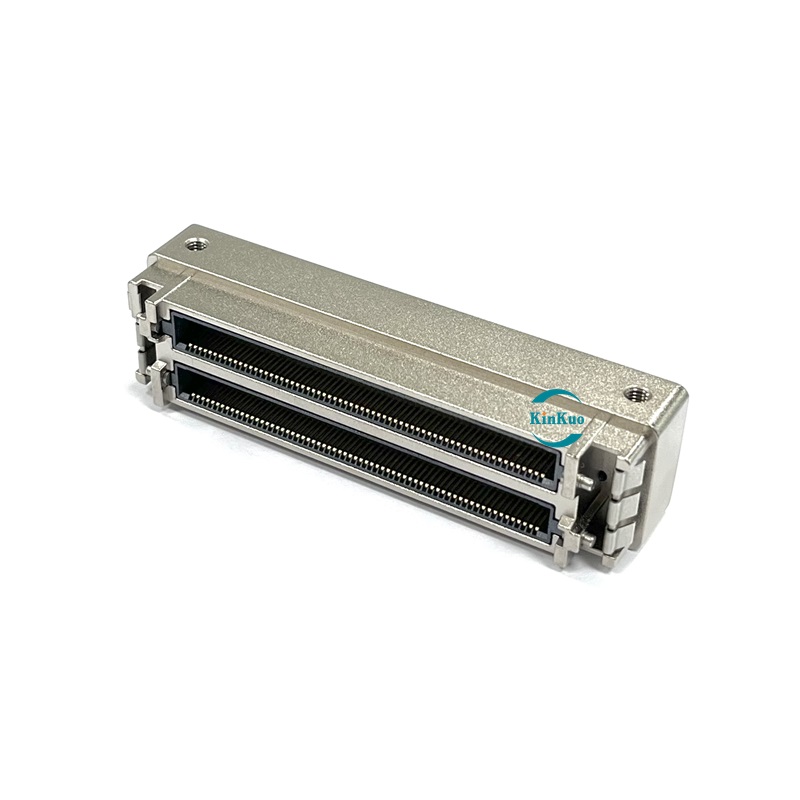

Description: TC-ZIF CONNECTOR Pitch: .0315" (0.8mm) Contacts No: 260 Application: Industrial, Medical Equipment.
Type: Vertical DIP type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing / Cover & Molding: LCP UL RATED 94 V-0, (Color:Black) Shell: ZINC alloy nickel Nut: Steel |
| ELECTRICAL PERFORMANCE |
|
Voltage: 40 VAC RMS. Current: 1.0 Amps at 30°C temperature rise. Insulation Resistance: 1000MΩ Min Dielectric Strength: 1000 VAC for I minute. |
| MECHANICAL PERFORMANCE |
|
Durability: 800 cycles per hour, 2000 mating cycles Mate/Un-mate torque: 55cNm Max Industrial Gas: R=10mΩ Max(Final) |
| Environmental |
| Temperature Rating: -45°C to +85° |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
