Amphenol Connector
| PRODUCT FAMILY |
|

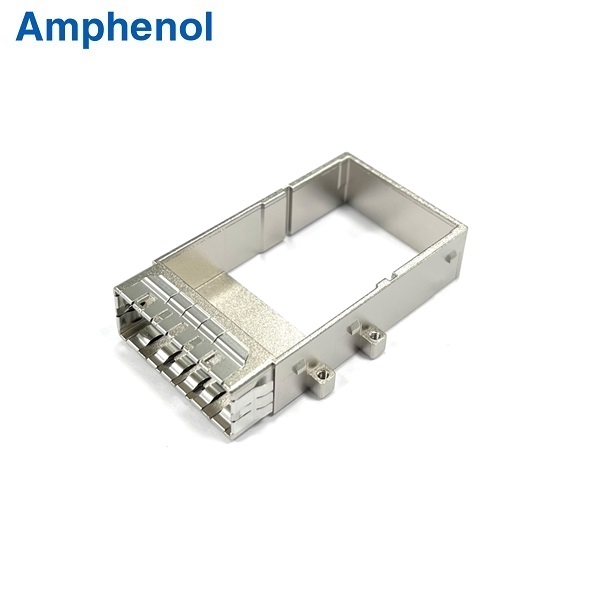

Description: CDFP IO Connectors Pitch: 0.75mm Contacts No: 120 Application: Networking,High-end Computing System,Server and Storage Systems
Type: Right Angle SMT type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Tin over nickel Housing & Molding: LCP UL RATED 94 V-0, (COLOR BLACK). Cage: ZINC alloy, nickel plating overall Screw: Steel |
| ELECTRICAL PERFORMANCE |
|
Dielectric Withstanding Voltage: EIA-364-20; apply a voltage of 300 VDC for 1 minute between adjacent terminals
Insulation Resistance: EIA-364-21 500 volts DC, 2-minute hold. Test between adjacent contacts. Low Level Contact Resistance: EIA-364-23 Subject specimens to 100 milliamperes maximum and 20 millivolts maximum open circuit voltage. |
| MECHANICAL PERFORMANCE |
|
Durability: 50 mating cycles Mating Force: 2.5 N / contact pair MAX insertion force (150 N total) Unmating Force: 1.25 N / contact pair MAX withdrawal force (75 N total) |
| Environmental |
|
Temperature Life & Humidity: EIA-364-31 Cycle connectors between 25º ± 3ºC at 80% RH and 65º± 3 ºC at 50% RH 24 cycles. Ramp times should be 0.5 hour and dwell should be 1.0 hour.
Thermal Shock: EIA 364-32, Method A, test condition I (10 cycles) |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
