Connectors
| PRODUCT FAMILY |
|

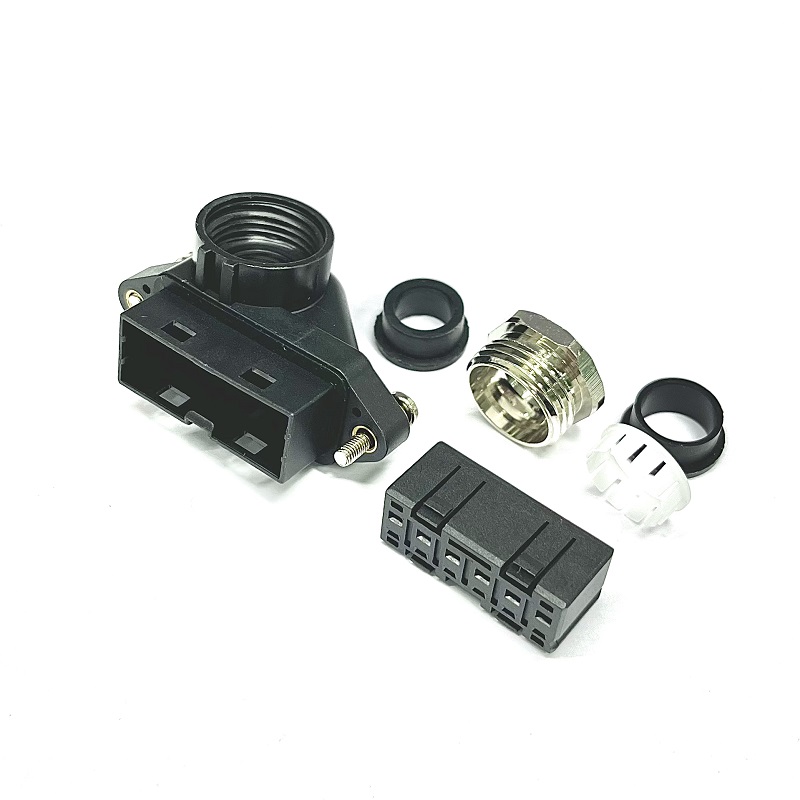

Description: Power Connectors Pitch: ? mm Contacts No: 6 Application: Fanuc servo motor
Type: Right Angle type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Tin over nickel Housing / Cover & Molding: Nylon UL RATED 94 V-0, (Color:Black) Case body: Nylon, UL94 V-0 (Color:Grey) Screw/Nut: Steel |
| ELECTRICAL PERFORMANCE |
|
Current rating: 5.0A per contact max Withstanding Voltage: 1000V AC Insulator Resistance: 1000MΩmax. at DC 500V DC |
| MECHANICAL PERFORMANCE |
|
Durability: 200 mating cycles Mating Force: 25 N max. per contact . Unmating force: 1.0 N min. per contact. |
| Environmental |
| Temperature Rating: -55°C to +105° |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
