Connectors
| PRODUCT FAMILY |
|

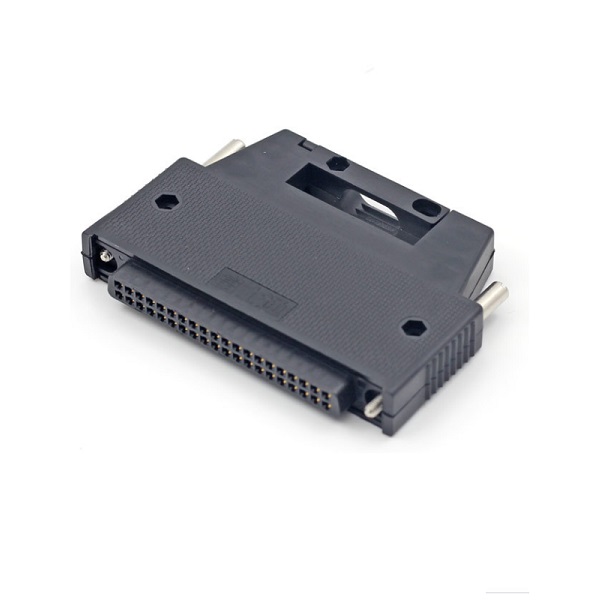

Description: A6CON1 Connectors Pitch: .100" (2.54mm) Contacts No: 40 Application: Cable assembly
Type: Solder type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:Black) Shell: NA Cover: ABS UL RATED 94 V-0, (Color:Black) Screw: Steel Nut: Steel |
| ELECTRICAL PERFORMANCE |
|
Current rating: 1.5A max Dielectric Withstanding Voltage:500V AC Insulation Resistance: 100MΩ/Min |
| MECHANICAL PERFORMANCE |
|
Durability: 250 mating cycles Mating force: 15N per contact Max. Unmating force: 0.5N per contact Min. |
| Environmental |
| Temperature Rating: -25°C to +85° |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
