Connectors
| PRODUCT FAMILY |
|

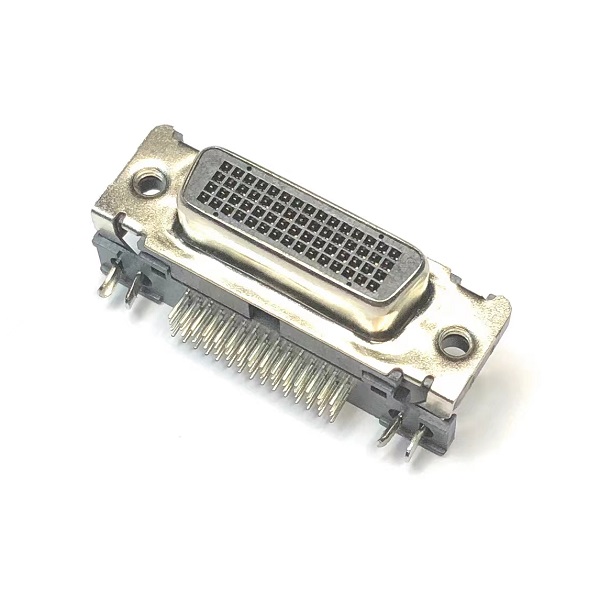

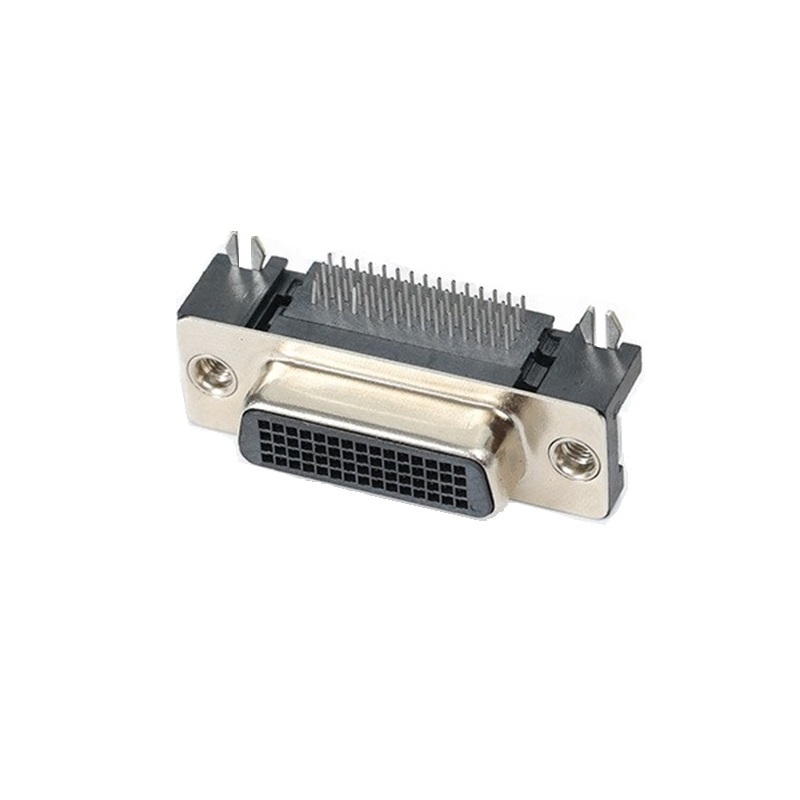

Description: LFH (Low Force Helix) connectors Pitch: .050" (1.27mm) Contacts No: 60, 160 and 200 Application: Industrial, medical, communication
Type: Right Angle and Vertical DIP type |
| MATERIAL |
|
Contact Base Metal: Copper alloy Contact Area Finish: Gold over nickel Solder Area Finish: Gold or Tin over nickel Housing / Cover & Molding: LCP UL RATED 94 V-0, (Color:Black) Shell: SPCC nickel Nut: Steel |
| ELECTRICAL PERFORMANCE |
|
Voltage: 40 VAC RMS. Current: 1.0 Amps at 30°C temperature rise. Initial Contact Interface resistance; 10 milliohms max. Dielectric Strength: 500 VRMS for I minute. |
| MECHANICAL PERFORMANCE |
|
Durability: 100 mating cycles Mating force below 60 grams max/contact Unmating force 40 grams min /contact |
| Environmental |
| Temperature Rating: -20°C to +85° |
| Product Environmental Compliance |
|
RoHS2.0: Compliant REACH SVHC: Yes |
