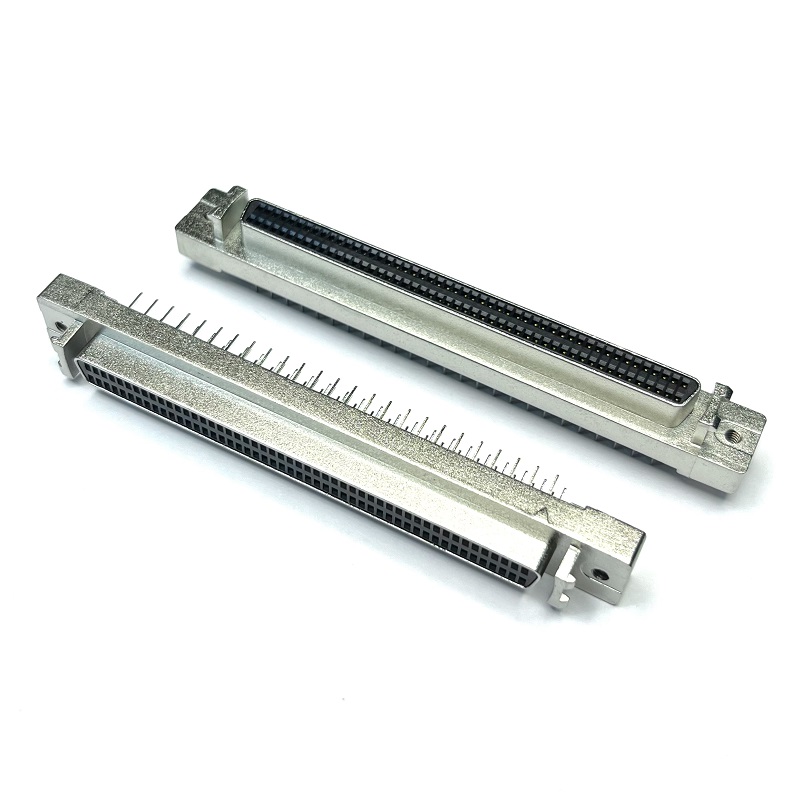

SCSI-II 100Pin Female V/T DIP Type Connector For PCB

Part No: B02-100818EC-XX

DOCUMENTATION

Drawing(.PDF)

Environmental Compliance

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: SCSI PIN Type Connectors
Pitch: .050" (1.27mm)

Contacts No: 14, 20, 26, 36, 40, 50, 68, 80 and 100

Application: PCB assembly

Type: Right Angle and Vertical DIP type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Tin over nickel
Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:Black)
Shell: ZINC alloy nickel
Hood: NA

Screw: Steel

ELECTRICAL PERFORMANCE

Current rating: 1.0A max
Dielectric Withstanding Voltage:500V AC
Insulation Resistance: 500MΩ/Min

MECHANICAL PERFORMANCE

Durability: 500 mating cycles
Mating Force: 2.5N/pin max.

Unmating Force: 0.30N/pin min.

Environmental

Temperature Rating: -40°C to +105°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
