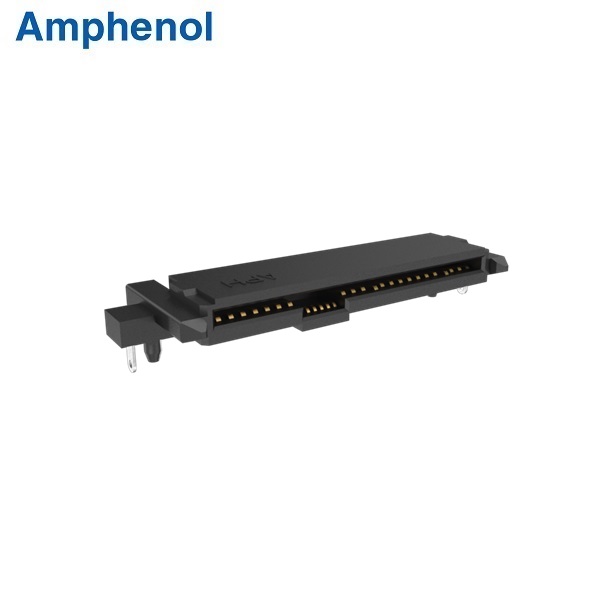

SAS PCIe SFF-8639 U.2 68Pin Female Connector Gen4

Part No: PSAS4-F213-0021TR

DOCUMENTATION

Drawing(.PDF)

3D Model

Specification

Environmental Compliance

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: SAS PCIe U.2 Connectors
Pitch: 0.80 / 1.27 mm

Contacts No: 68

Application: 24Gb/s SSDs and HDDs or PCle based devices at 16GT/s

Type: Vertical and Right Angle SMT type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Tin over nickel
Housing & Spacer: High temperature plastic LCP (UL 94V-0) Black
Retainer Clip Base Metal: Copper alloy

Retainer Plating: Tin over nickel

ELECTRICAL PERFORMANCE

Operating Voltage: 30 VDC per contact
Operating Current: 1.5 A per contact
Insulation Resistance: 1000MΩ min

MECHANICAL PERFORMANCE

Durability: 500 mating cycles
Mating Force: 59 N max.
Unmating Force: 6N min.

ENVIRONMENTAL

Humidity: 96 hours at 40°C with 90-95% relative humidity.
Temperature Life: 85°C for 500 hours.

ENVIRONMENTAL COMPLIANCE

RoHS2.0: Compliant
REACH SVHC: Yes
