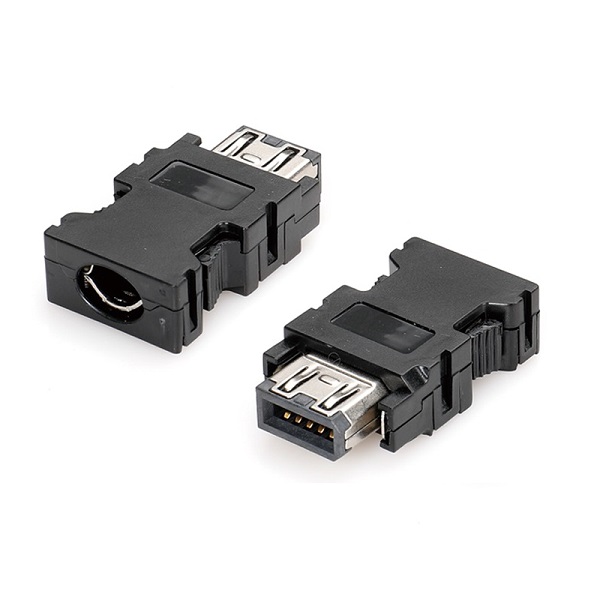

SCR 10Pin Male Servo Encoder Connector (SM-10P)

Part No: B01-010311A1-01

DOCUMENTATION

Drawing(.PDF)

3D Model

Environmental Compliance

Quote Request

SPECIFICATION DETAIL

PRODUCT FAMILY

Description: SCR Connectors
Pitch: 2.00mm

Contacts No: 10

Application: Industrial Automation

Type: Solder type

MATERIAL

Contact Base Metal: Copper alloy
Contact Area Finish: Gold over nickel
Solder Area Finish: Gold or Tin over nickel
Housing / Cover & Molding: PBT UL RATED 94 V-0, (Color:Black)
Shell: SPCC nickel
Hood: ABS, (Color:Black)

Screw: Steel

Latch: Steel

ELECTRICAL PERFORMANCE

Current rating: 1.5A max
Dielectric Withstanding Voltage:500V AC
Insulation Resistance: 500MΩ/Min

MECHANICAL PERFORMANCE

Durability: 500 mating cycles
Mating Force: 39.2 N {4kgf} MAX.
Unmating force: 2.54 N {1kgf} MIN.

Environmental

Temperature Rating: -25°C to +85°

Product Environmental Compliance

RoHS2.0: Compliant
REACH SVHC: Yes
